Bar Foot Rails: Everything You Need to Know Before You Buy

Dimensions, materials, mounting options, and how to avoid the most common installation mistakes!!

If you've decided to add a foot rail to your home bar, commercial counter, or hospitality space, you're making the right call. A properly specified and installed brass foot rail transforms the look and feel of any bar setup, but there are enough variables in the selection and installation process that it pays to understand the basics before you buy.

This is the guide we wish existed when we were first figuring it out.

Standard Foot Rail Dimensions

Getting the dimensions right is the most important step. Here's what to know:

• Height off the floor: The standard is between 6 and 9 inches (150–230mm) from the finished floor surface. The most common specification for a 42-inch bar height is 8 inches (200mm). Too low and it interferes with cleaning; too high and it loses its ergonomic function.
• Distance from the bar face: The center of the foot rail tube should align roughly with the outer edge of the bar counter's toe kick, typically 2 to 4 inches in front of the cabinet face.
• Tube diameter: 50mm (approximately 2 inches) is the industry standard for bar foot rails. Smaller diameters look insubstantial; larger ones become uncomfortable to rest a foot against.
• Bracket spacing: Place brackets every 36 to 48 inches for a solid, rigid installation. For runs longer than 8 feet, consider intermediate supports to prevent any sag.

Solid Brass vs. Brass-Plated: Understanding the Difference

This distinction matters more for foot rails than perhaps any other piece of bar hardware, because the rail takes a lot of physical contact, shoes, feet, cleaning products, spilled liquids. Here's the reality:

• Brass-plated steel: The base metal is mild steel with a thin brass electroplate coating. Over time, especially in a bar environment, the coating chips and flakes where feet contact it, exposing the steel underneath which will rust. The appearance degradation is visible within a few years of regular use.
• Solid unlacquered brass: Brass all the way through, no coating. It won't chip or peel. The surface will develop a patina with use and exposure, but this patina is entirely aesthetic and doesn't compromise the metal. A light polish restores the original shine whenever desired.

For a long-term installation, solid unlacquered brass is the only specification that makes sense.

Mounting Options: Floor vs. Wall

Most bar foot rails are floor-mounted, the brackets bolt directly to the floor in front of the bar. This is the most structurally sound option and works on almost any floor type including concrete, hardwood, and tile.

In some situations, particularly where the floor cannot be drilled (rental properties, floating floors, historic tiles), wall-mounting to the front of the bar cabinet is an alternative. Wall-mounted installations typically use smaller bracket profiles and are better suited to lighter-use residential applications.

For commercial or heavy-use residential installations, floor-mounting is always preferable for stability.

Corner and Custom Configurations

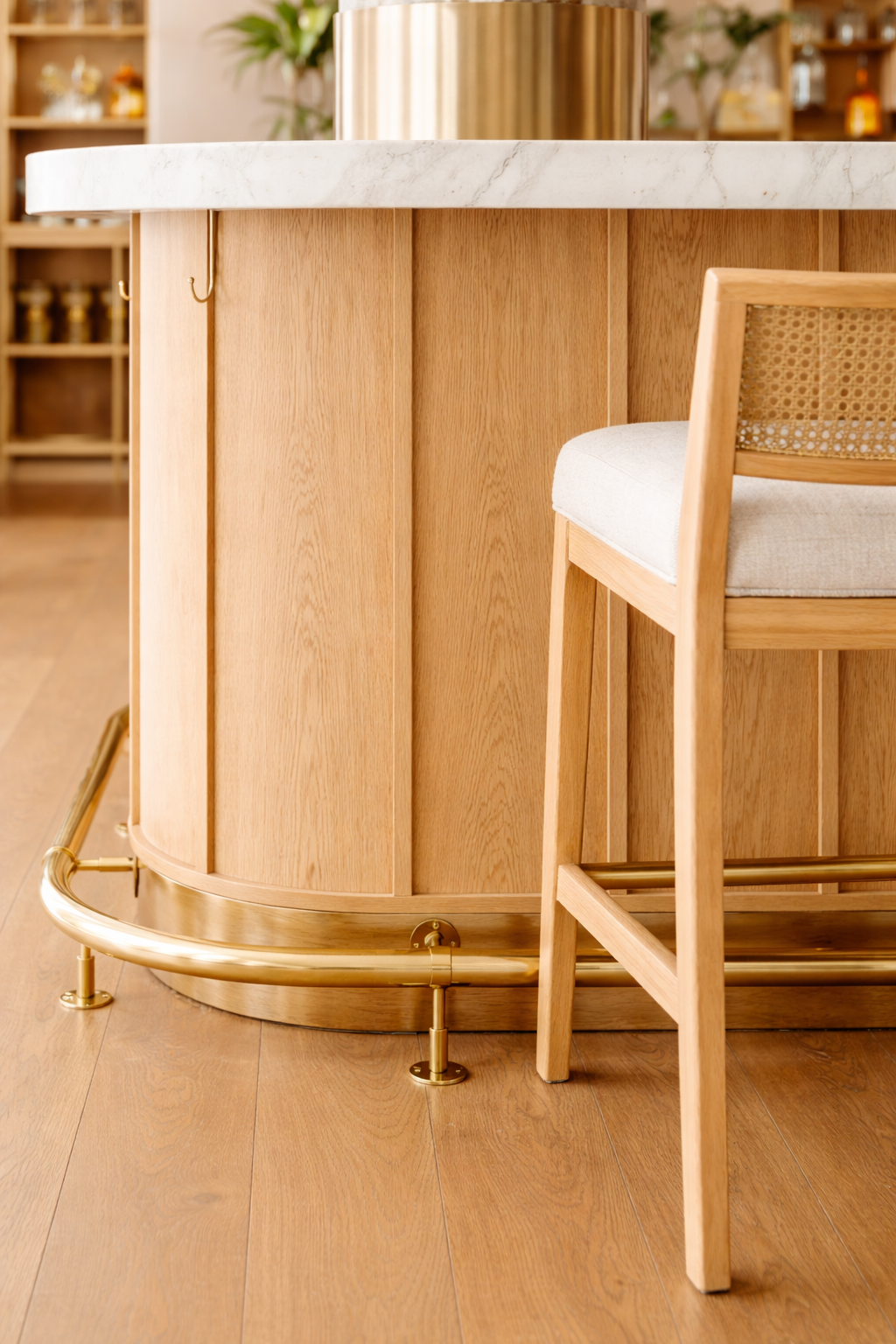

Straight runs are the simplest case, but many bars have corners. For L-shaped or U-shaped bar layouts, you have two options:

• Corner fittings: 90-degree corner connectors that join two straight tube sections at a right angle. These are the most common and cost-effective approach for standard right-angle corners.
• Bent tube: For curves or non-standard angles, tube can be custom-bent to match the exact radius of the bar. This gives the cleanest look but requires more planning.

Care and Maintenance

A solid brass foot rail requires minimal maintenance:

• For routine cleaning, a damp cloth is sufficient. Avoid abrasive cleaners that scratch the surface.
• If you prefer to slow the development of patina, apply a light coat of Renaissance wax or a similar museum-grade paste wax every few months.
• To remove tarnish and restore shine, a brass cleaner applied with a soft cloth, followed by a warm water rinse, is all that's needed.
• To intentionally accelerate the patina for a more aged look, exposure to air and gentle use are all that's required, no chemical treatment necessary.

Common Mistakes to Avoid

• Buying before measuring, always calculate your exact run length before ordering tube sections.
• Spacing brackets too far apart, leads to a flexible, springy rail that feels cheap and poorly installed.
• Choosing plated over solid brass,the savings are rarely worth the maintenance headaches and early replacement costs.
• Forgetting end caps, exposed tube ends are a safety concern and an aesthetic flaw; specify end caps in your order.
